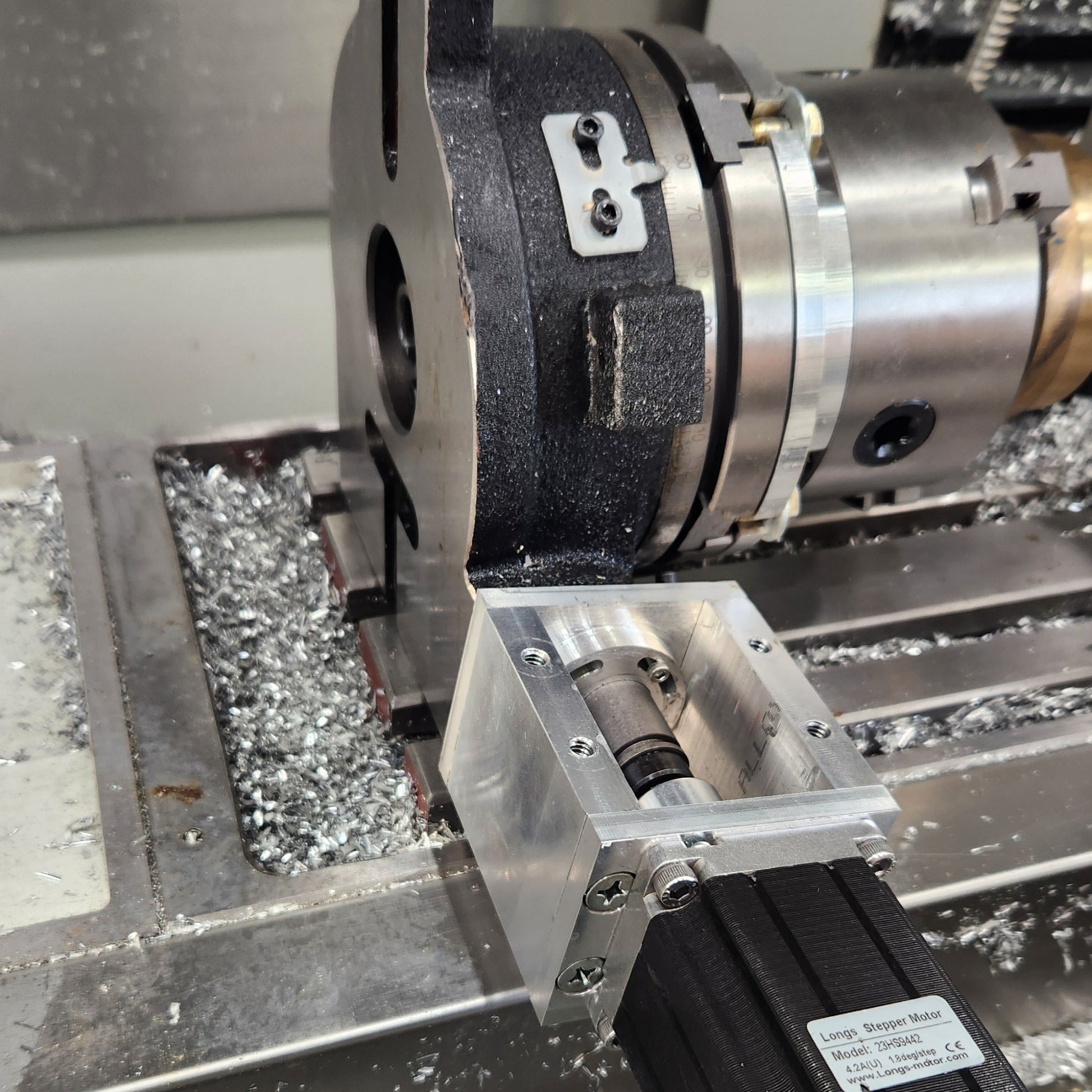

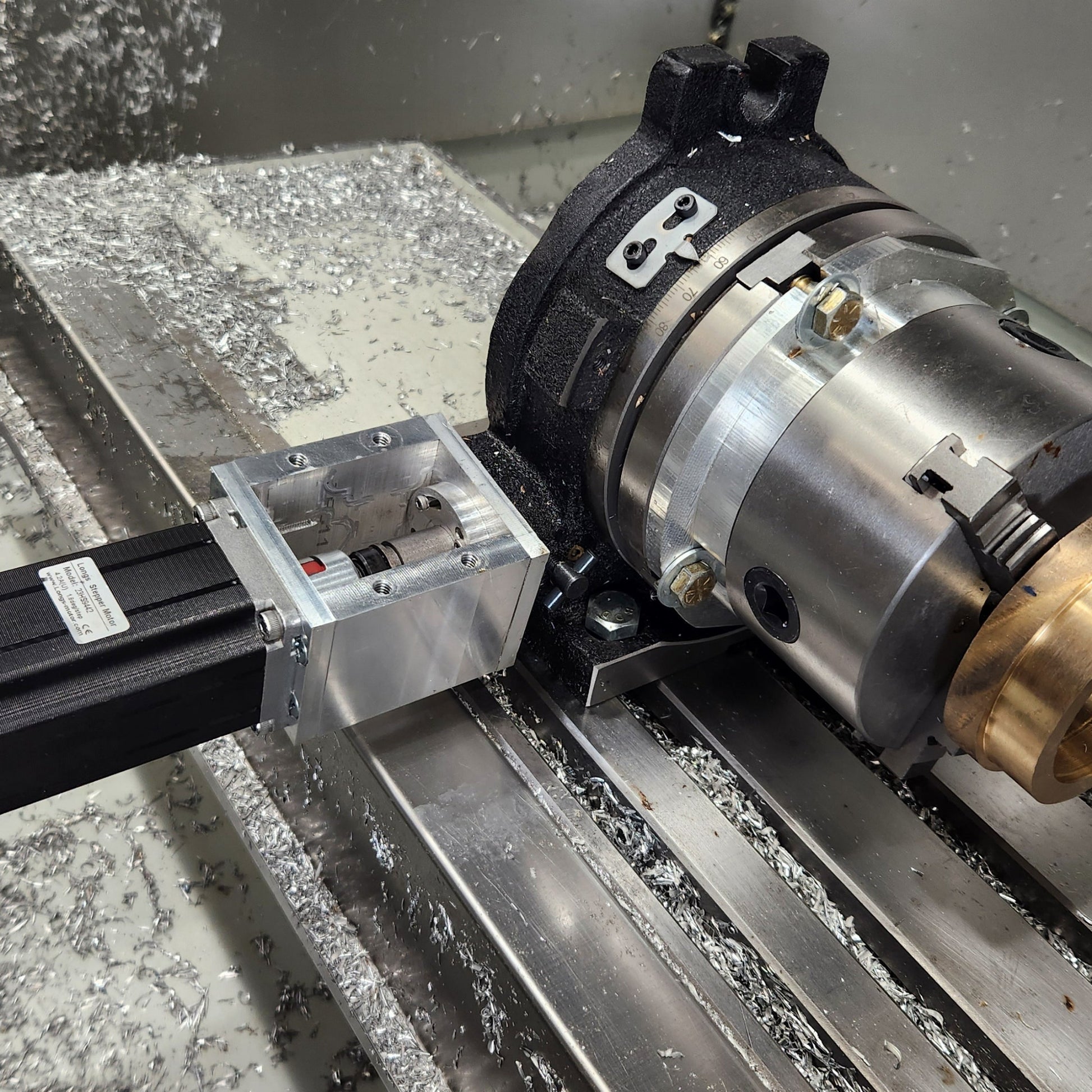

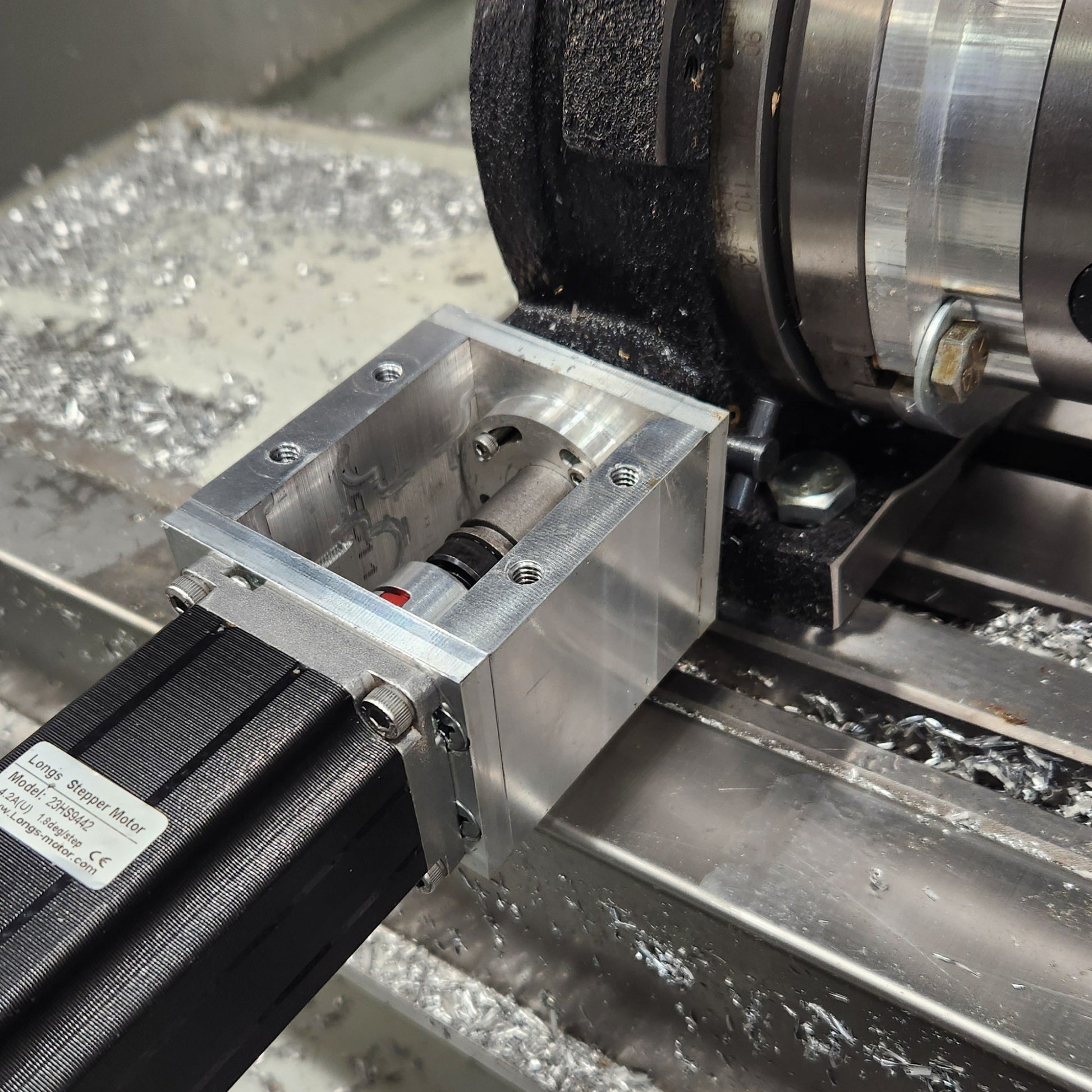

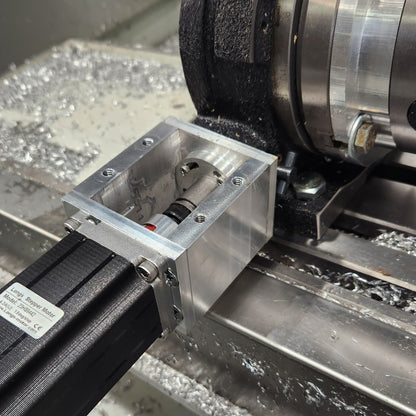

Instantly download the STP and F3D CAD files for a motor mount bracket designed to fit the Vevor 6" rotary table.
This is a straightforward 3-axis CNC mill project that gives you an affordable path to 4th axis capability. No guesswork, no reverse engineering.
This 4th axis was designed to work with the Tormach PCNC 1100, you only need to wire and configure your stepper driver to get this running with PathPilot.
What's included:

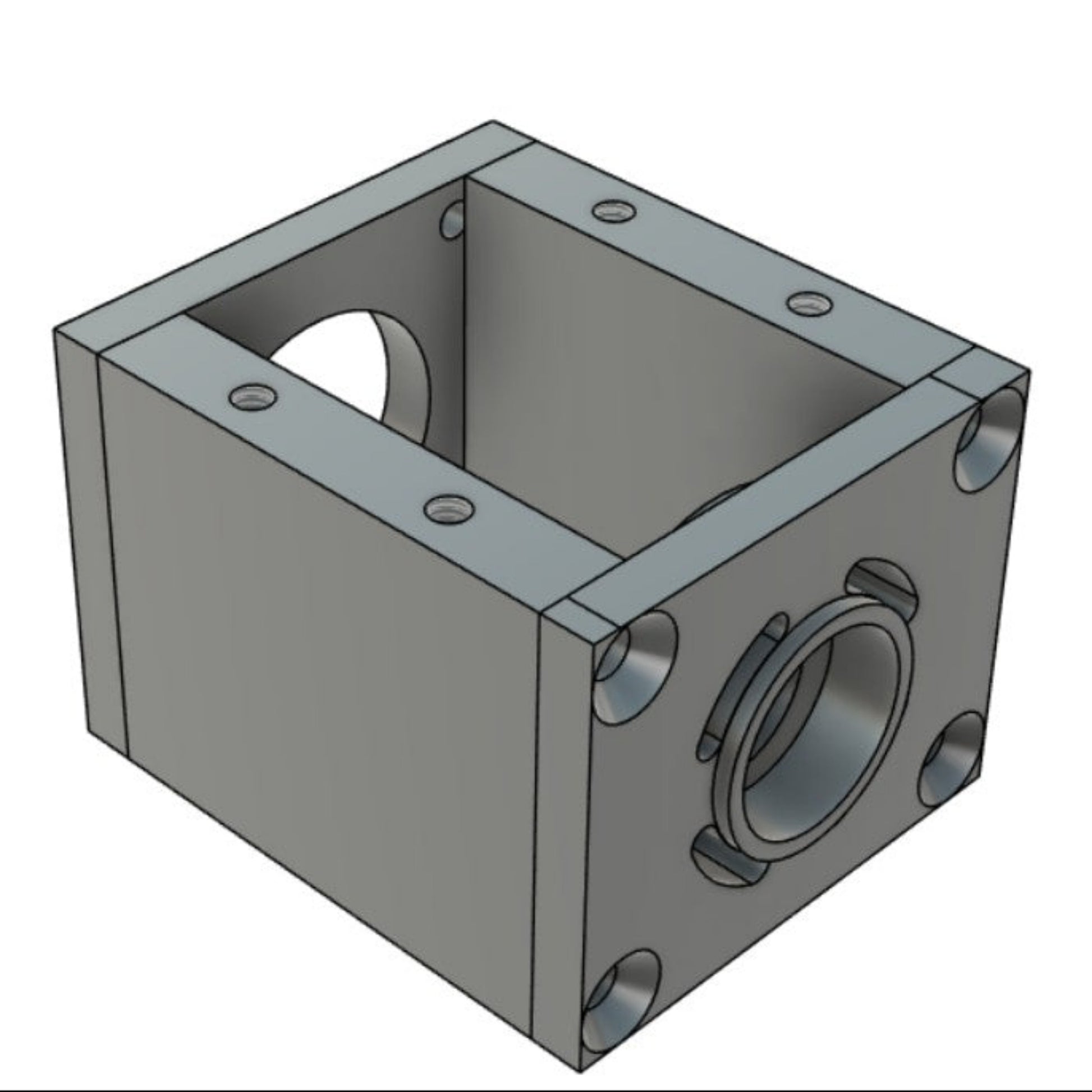

STP file (universal CAD format)
F3D file (Fusion 360 native)
CAM toolpaths (included as a starting point — expect to adjust feeds, speeds, and tooling to match your setup and material)
Compatible with:
Vevor 6" rotary table and others with the same casting.
NEMA 23 Motor Mounting Hole Pattern
License & Use: These files are licensed for personal use only. Redistribution, resale, or commercial use of these files or parts manufactured from them is not permitted.
