G0602 & G0752 Cast Iron Tool Post Riser

NOTE 1: The first few of these will be machined to order, so please expect 2 weeks before shipment.

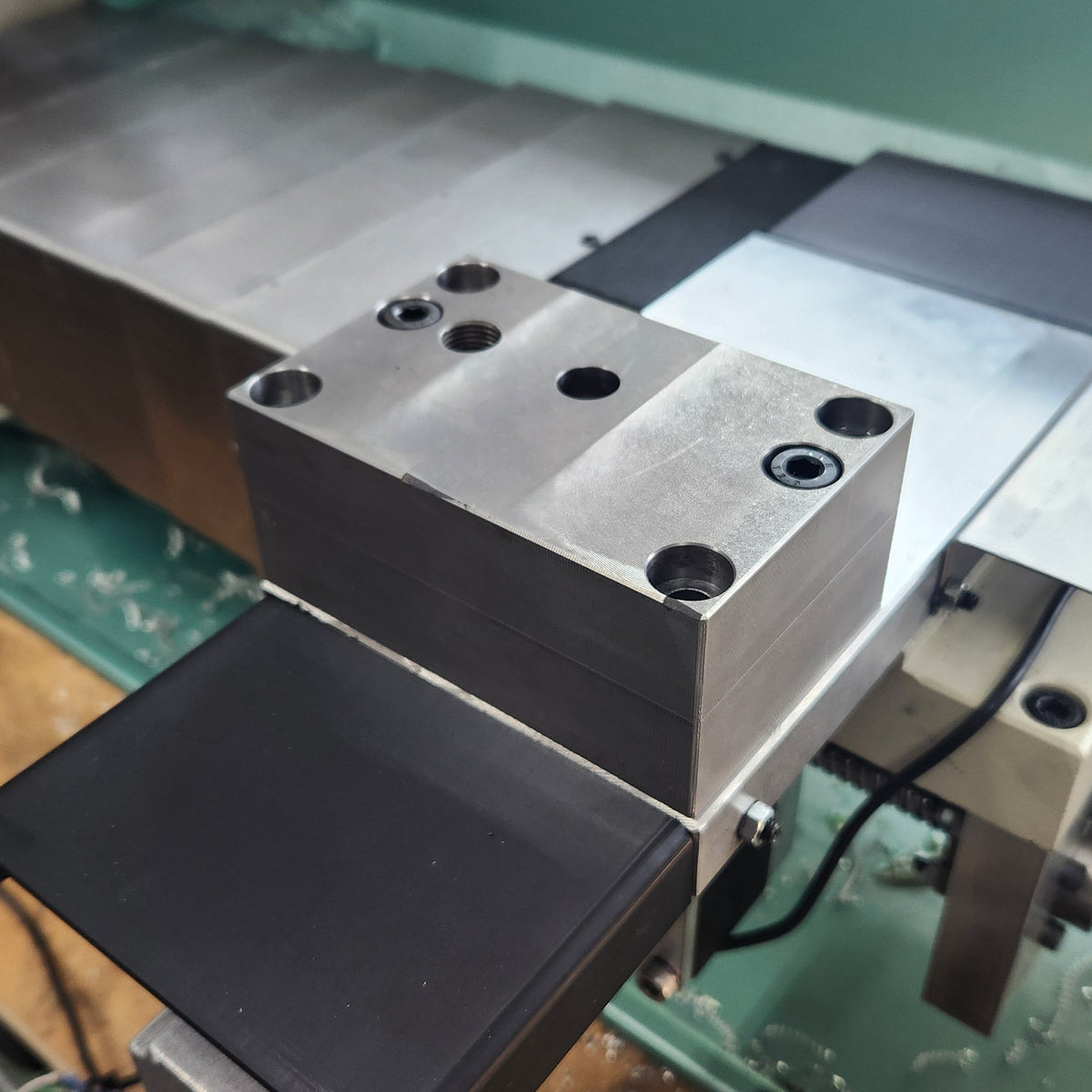

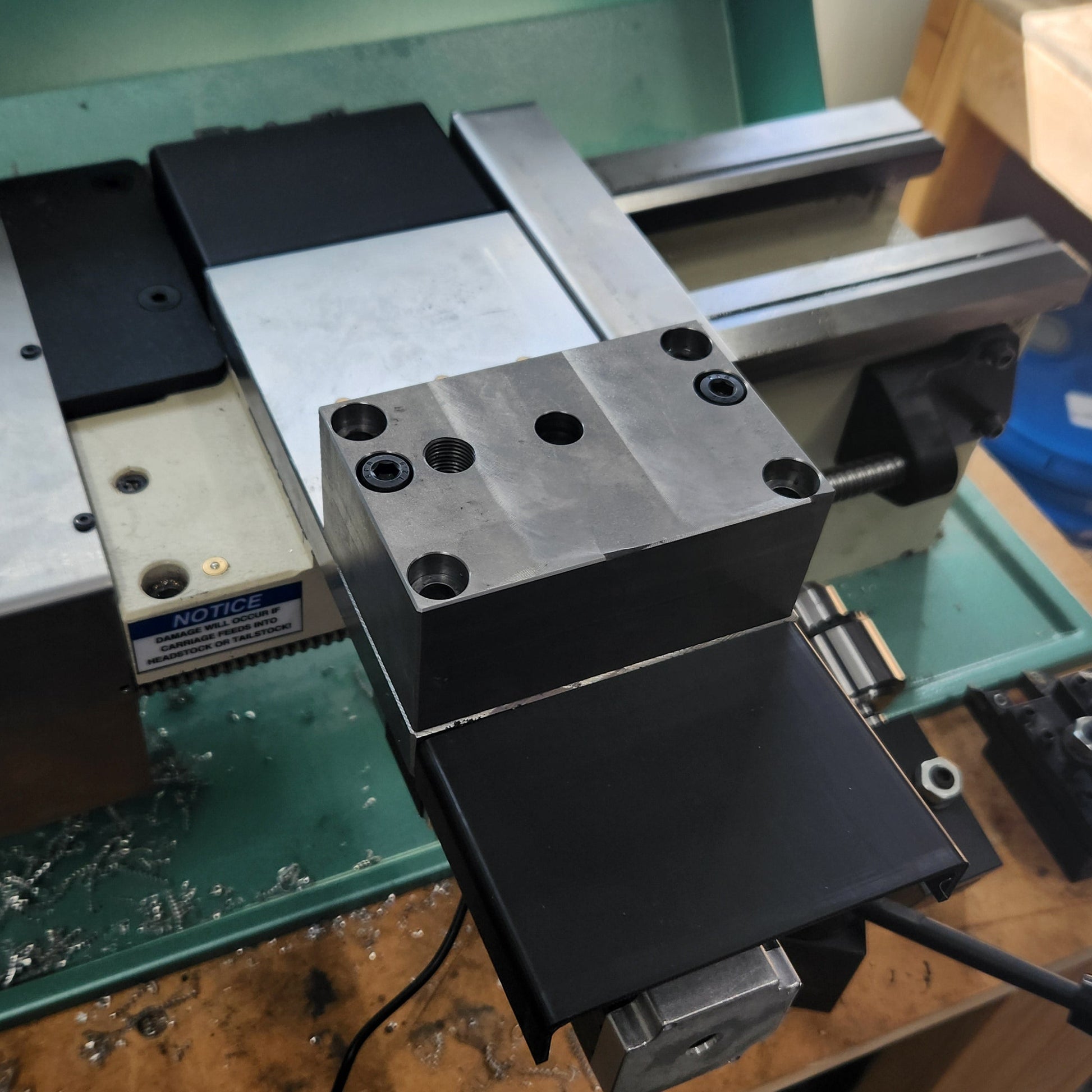

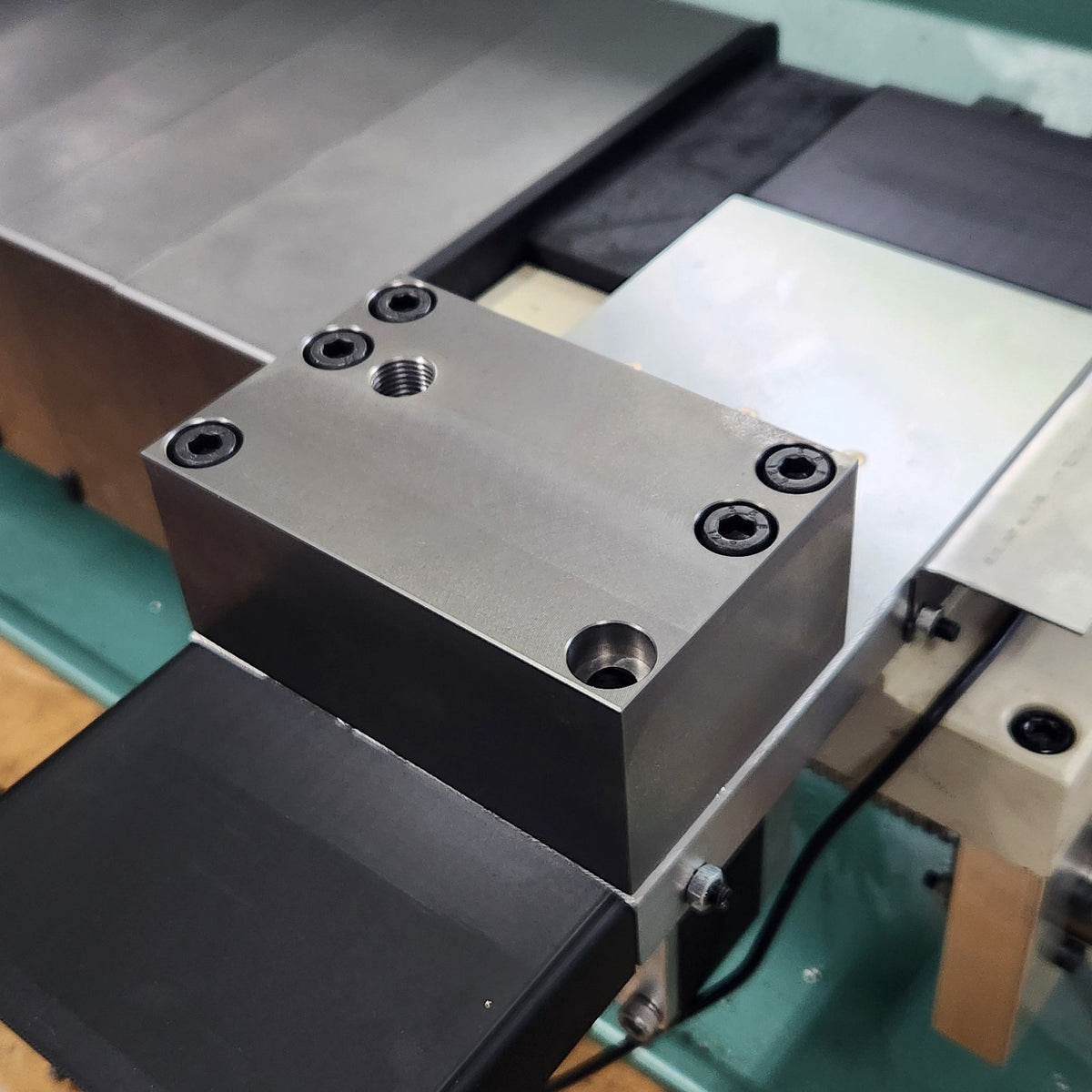

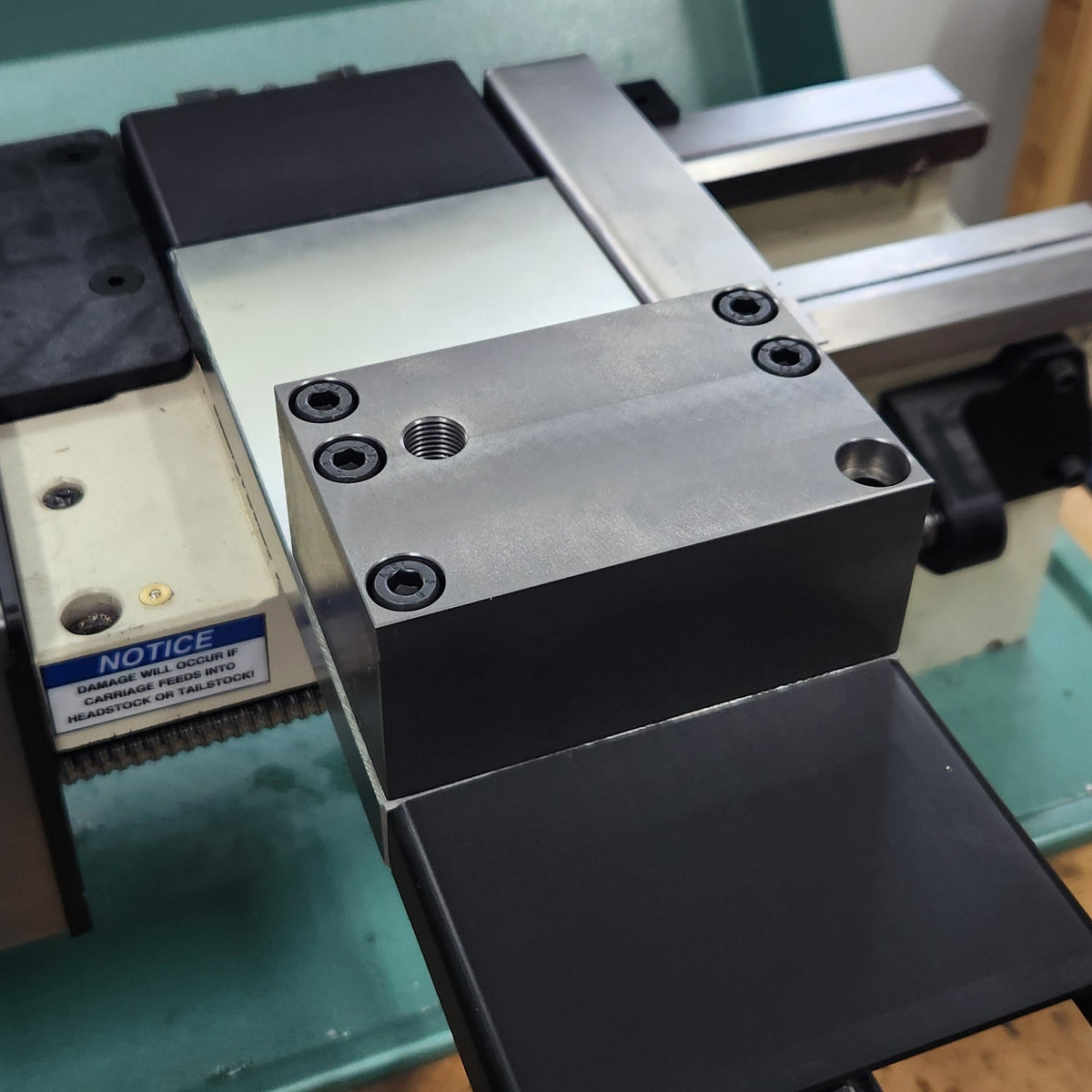

NOTE 2: The images show 6 mounting holes.  The front right mounting hole was found to be very close to the gib screw hole on the cross slide, therefore it will be omitted. The final revision has the original 2 mounting holes and 3 additional holes that can optionally be used but require you to drill and tap your cross slide.

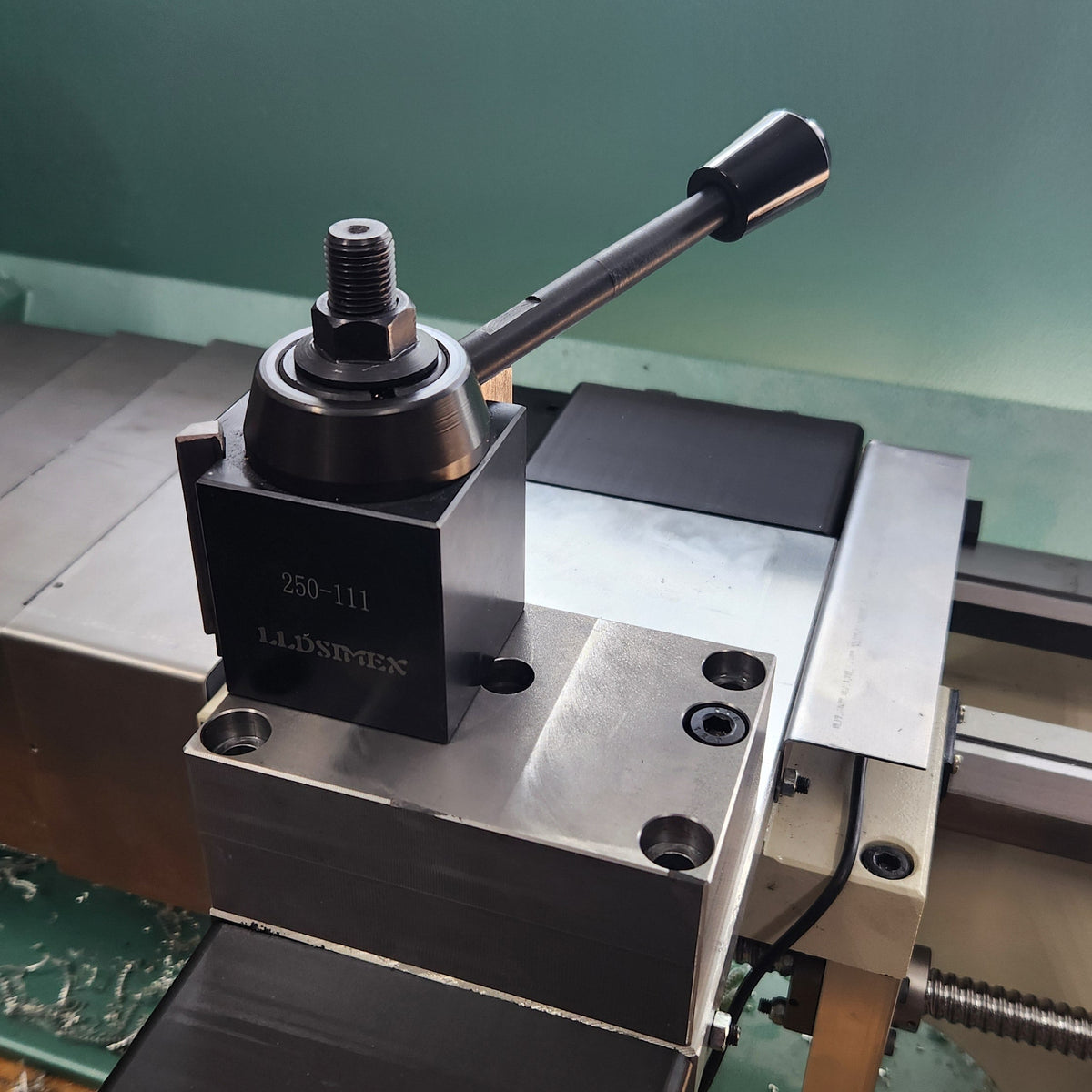

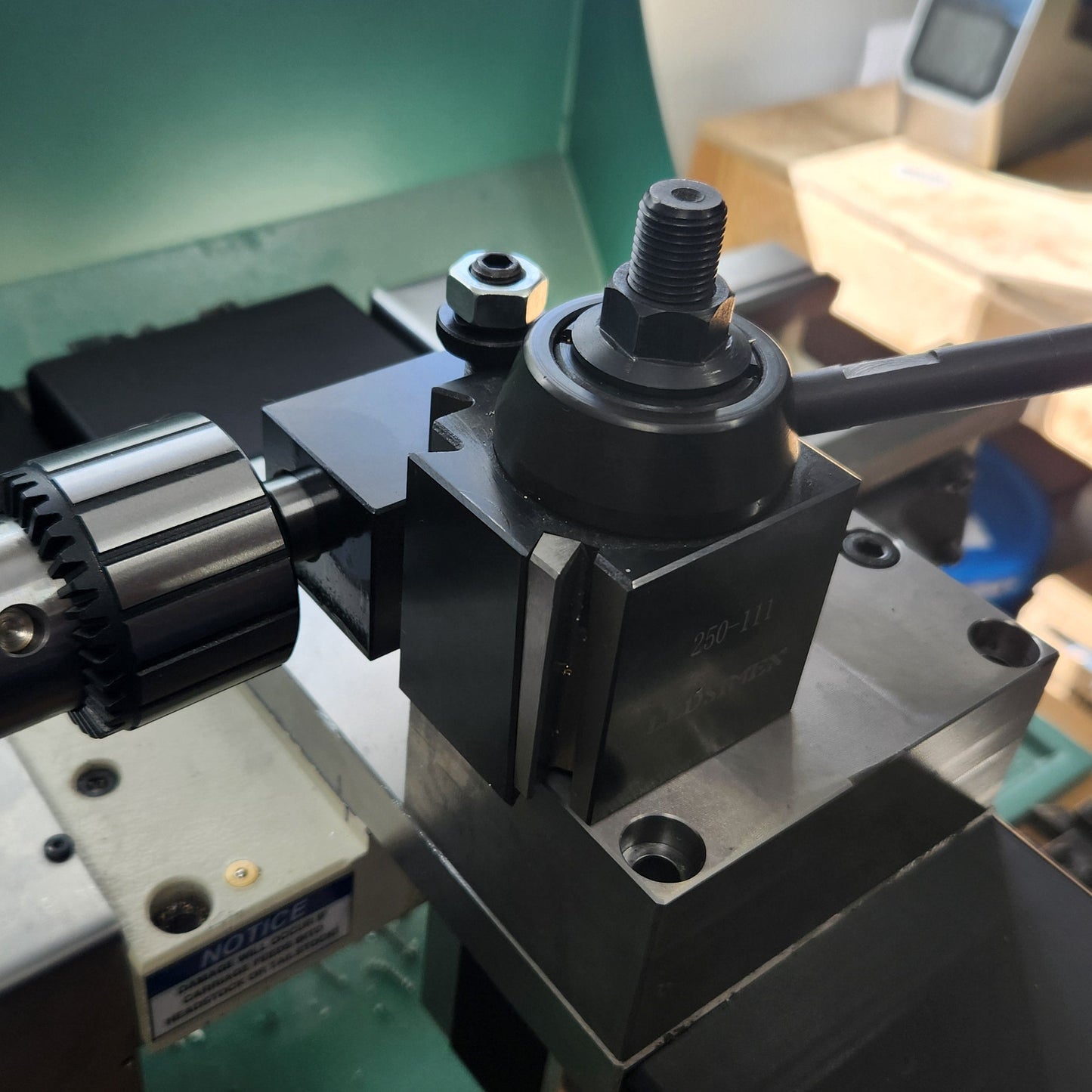

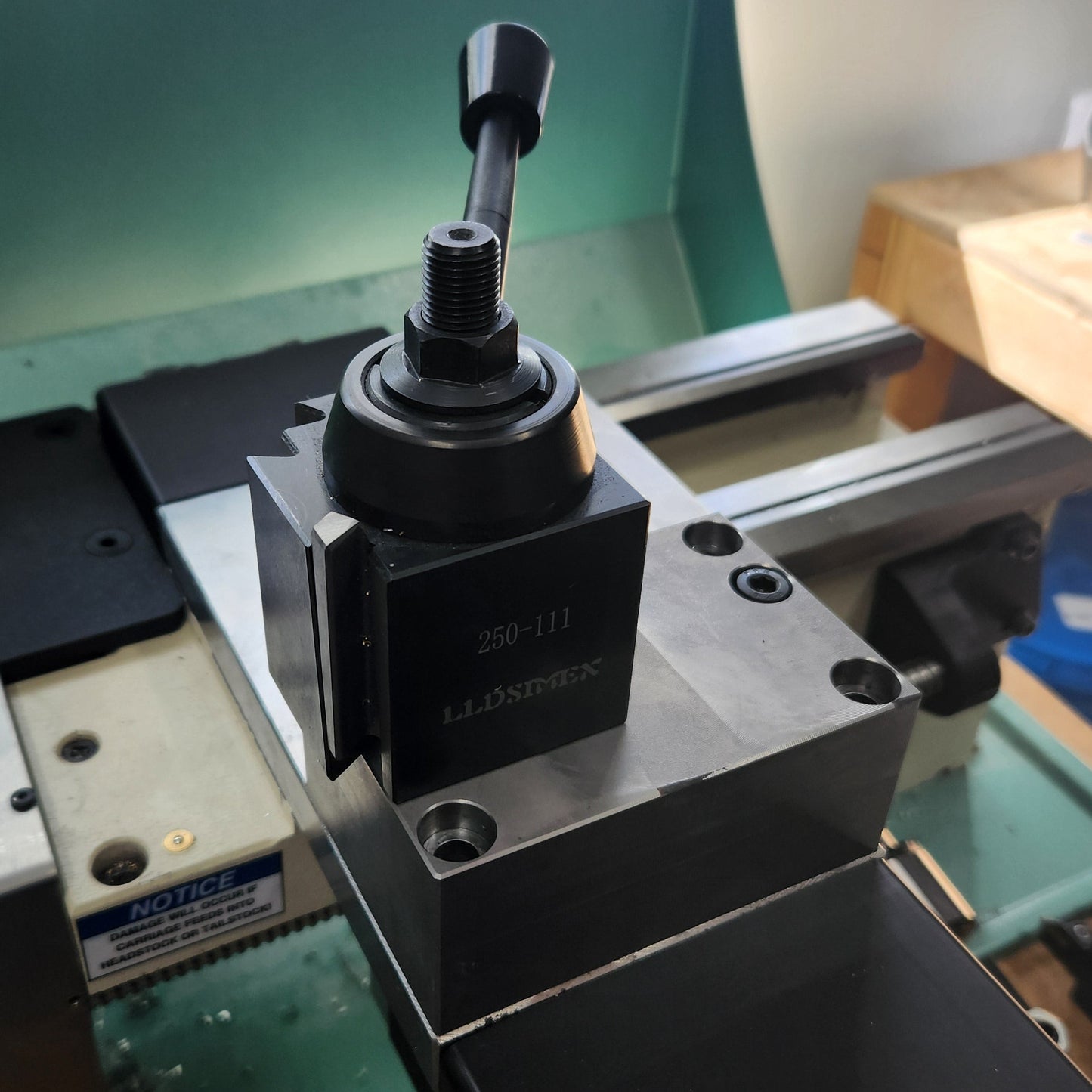

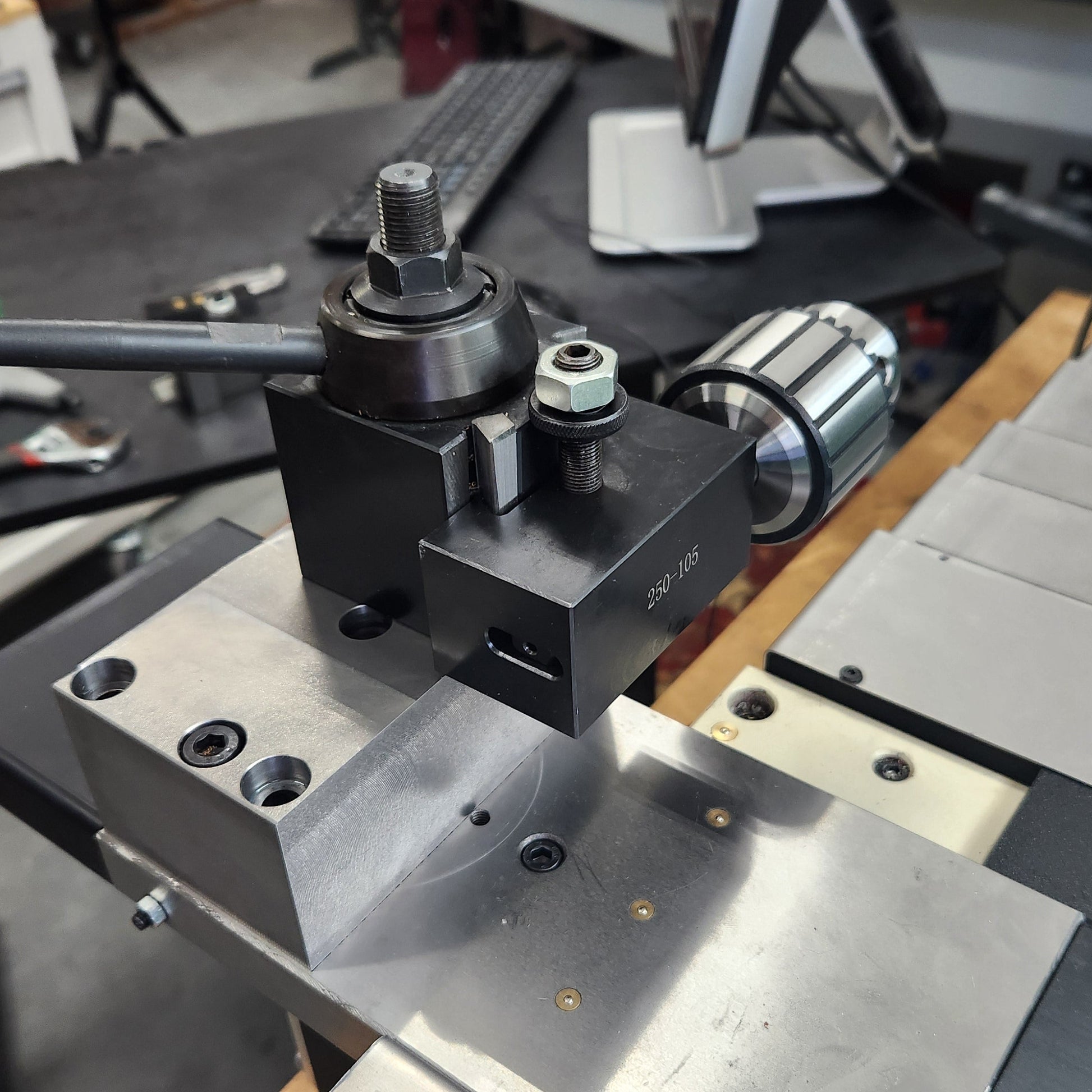

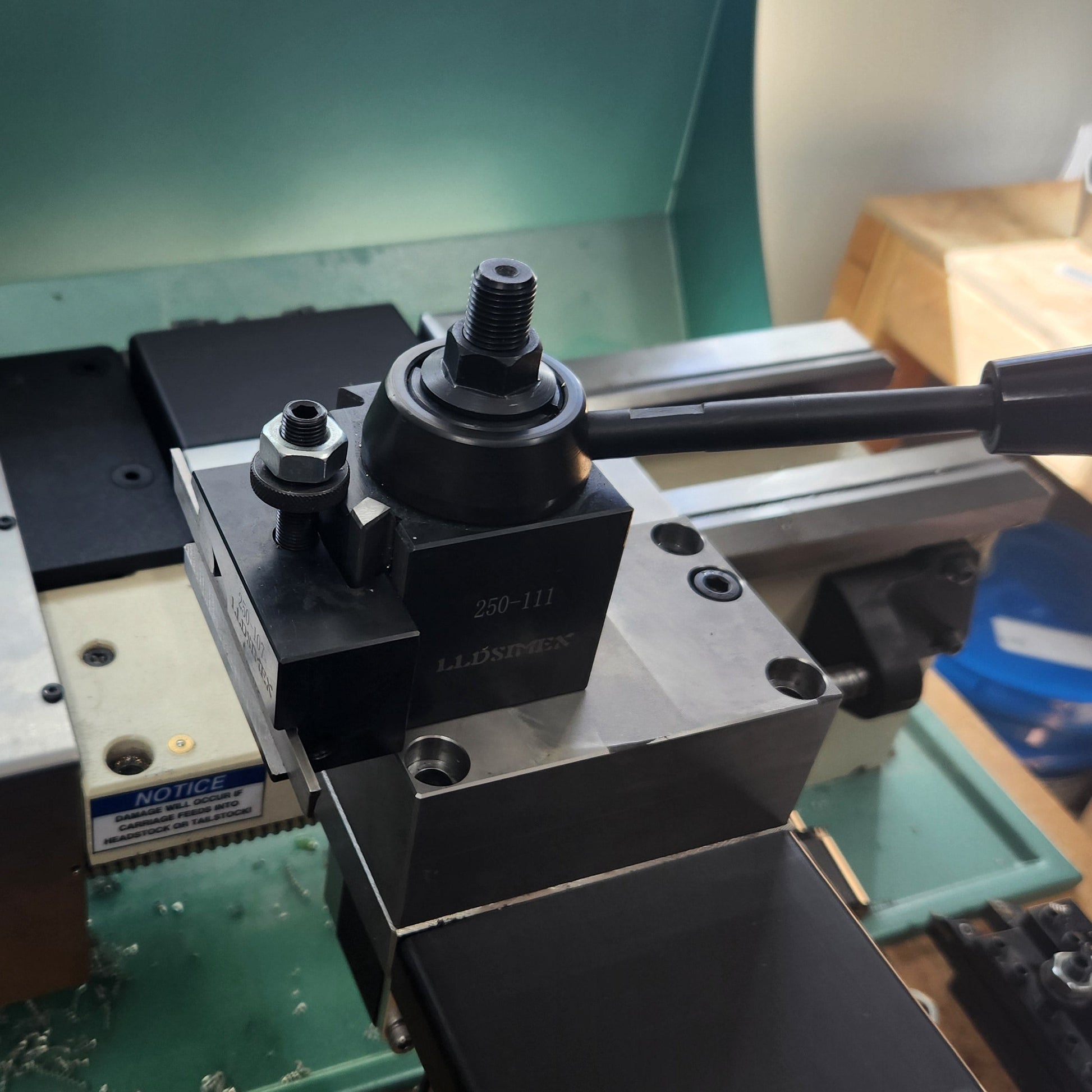

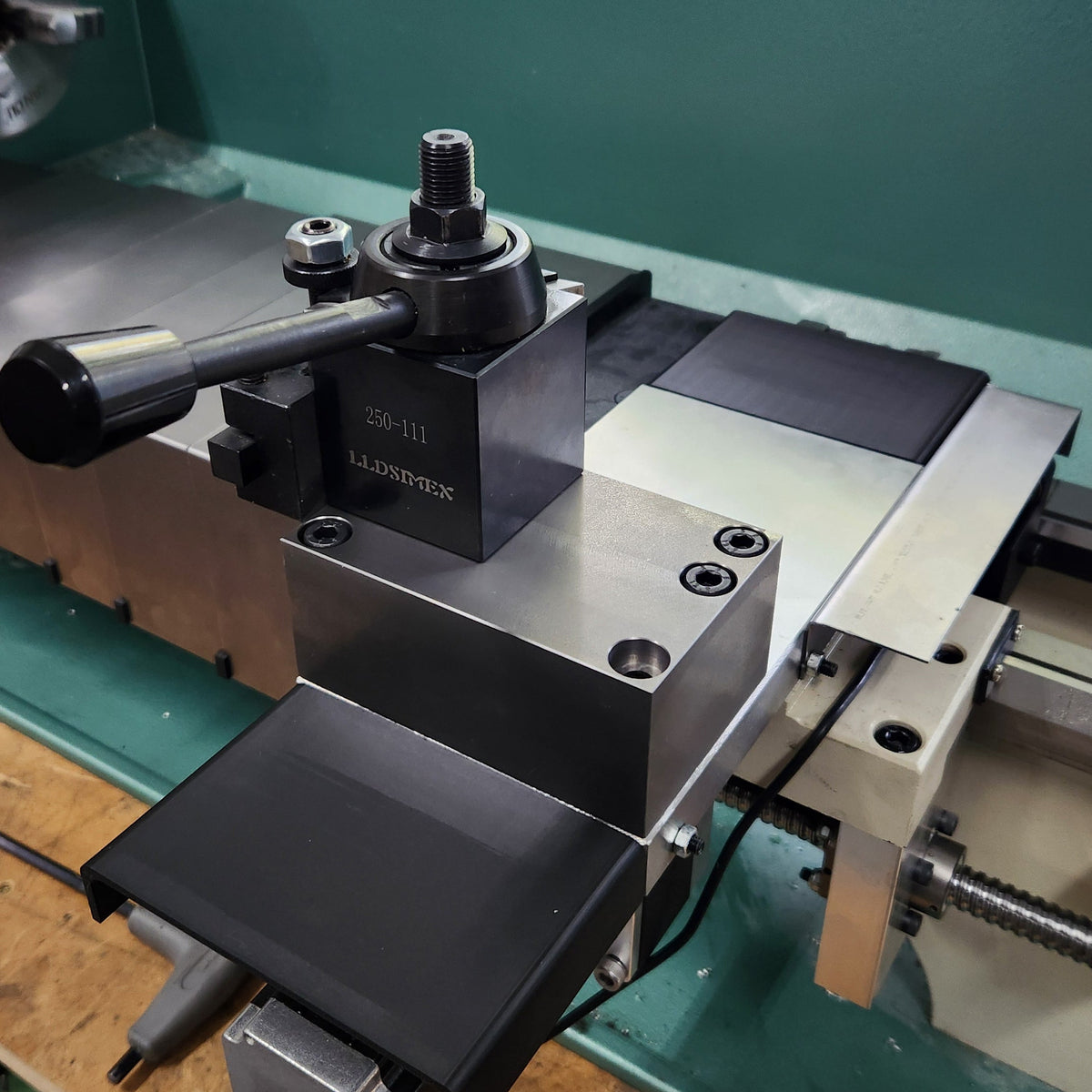

AXA Quick Change Tool Post Riser

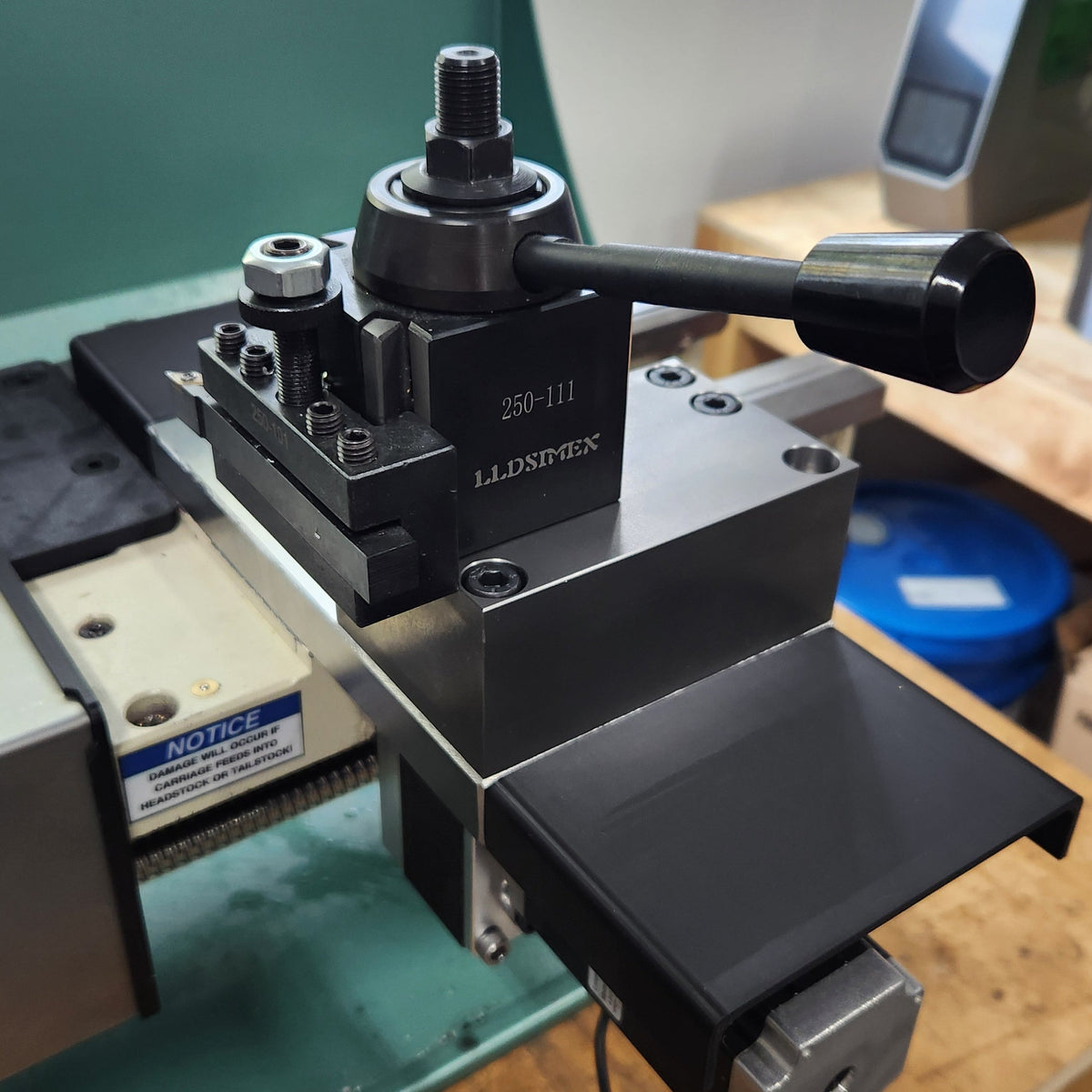

Raise your AXA quick change tool post to the ideal working height with this precision-machined riser block. Cast from Class 40 gray iron for excellent vibration damping and rigidity, this riser keeps your tool post rock solid during heavy cuts.

This riser is designed to replace the factory compound slide — a known weak point on the G0602/G0752 — giving you a rigid, fixed riser in its place when compound movement isn't needed.

Specifications

• Material: Cast Iron, Class 40
• Dimensions: 4.625" L × 3" W × 2" H
• Compatible Tool Post Size: AXA (100 series)
• Tool Post Threads: 9/16-18

Features

• Replaces the factory compound slide, eliminating a common source of chatter and flex
• Uses the 2 original factory mounting holes — no modifications to your cross slide required
• Drilled for 3 additional mounting holes for maximum rigidity
• Class 40 cast iron construction provides superior vibration damping compared to steel or aluminum alternatives

• Raises your AXA tool post to accommodate larger workpieces or taller tool holders
• Maintains full rigidity and stability at the tool post interface
